Monel K500

Item Code: Features:
  • Description

Physical Properties:

Density: 8.05g/cm3
Melting Point: 1288-1343℃
Modulus of Elasticity: 180-220 GPa
Thermal Conductivity:11.8 λ/(W(m•℃)
Hardness: - Brinell 100-230
Electrical Resistivity( 20 - 100°C): 10.3 x10-6K-1
Approx Service Temperature :-100 to +260°C
Main Characteristics:Good heat-resisting corrosion and long-term organiza-tional stability.
Applications:Mainly used in the manufacture of aviation engines on the temp-erature below 750 ℃ in the turbine blades and gas turbine blade; domestic avi-ation engine in terms 一,二 and turbine disk to disk, and other parts.

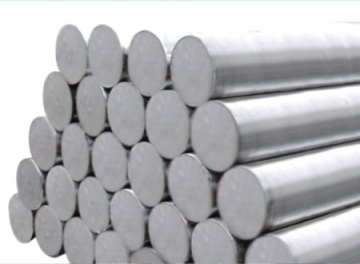

Specification:Forgings,Rod, Plate, Strip,Ring, Wire, Bolts, Springs and other consultations supply, according to customer's production.

Chemical Compositions:

Chemical Compositions(%)

C

Cr

Ni

V

Fe

Co

Mn

Si

P

S

Mo

=
0.05

=
1.0

rem

49
-
51

4
-
6

=
2.5

=
1.0

=
1.0

=
0.03

=
0.03

26
-
30
